TAN-M1600-RP 监视器

GENERAL

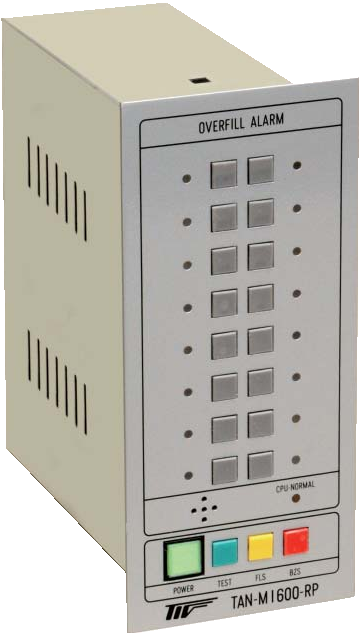

TAN-M1600-RP is an annunciator unit for high level alarm monitors, such as a tanker and a products carrier. A high level alarm and over- flow alarm system is constituted in combination with FP-7091S-T and LIDEC high level alarm switch.



The level alarm of a maximum of 16 points can be processed with compact housing of panel mounting type with the newest electronic technology.



It is optimum as the standalone unit of high level alarms (overfill) required by each shipping classification such as NK and USCG.





STANDARD SPECIFICATION



● Number of inputs : Up to 16 points. (Connector joint)

● Input signal : 1) Non-voltage contact, or

2) Open collector (Photo coupler) contact

● Performance : The next action is carried out at the time of

alarm generating.

1) Predetermined LED on the front panel blinks. (Green changes to red.)

2) A buzzer sounds.

3) A rear-face external buzzer contact is set to ON.

4) The contact for external alarm lamps is set to ON.

The above-mentioned 1) can be stopped by ON of the flicker stop button (FLS) on the front panel, or a rear-face flicker stop contact.

And the above 2) and 3) can be stopped by ON of the buzzer stop button (BZS) on the front panel, or a rear-face buzzer stop contact, and 4) corresponds to the action of an on-site contact.

● Alarm operation pattern : It is based on JISF0412 AM2.

● Delay timer of operation : Arbitrary setup of 0 to 15 seconds

● Other indications : 1) CPU operation confirming LED (Yellow).

: 2) Power supply ON display lamp (Green)

● Output: : 1) The contact output for buzzers. (SPST, 125 V AC, 0.4A/30 V DC, 2A*)

2) CPU trouble self-diagnosis contact out put. (SPST, 125 V AC, 0.4A/30 V DC, 2A*)

* M3.5 screw terminal connection.

3) The contact output for external alarm lamps. (Connector joint, a 16-point inde pendent contact)

● Power supply: : 24 V DC, +/-10%.

● Power consumption : About 10 VA

● Installation : Panel installation

(Installation in safety area and exclusive fitting to be used)

● Ambient temperature : -10 to +60°C

● Ambient humidity : 20 to 95% RH (No dew condensation)
