DIR-700 液位监视器

GENERAL

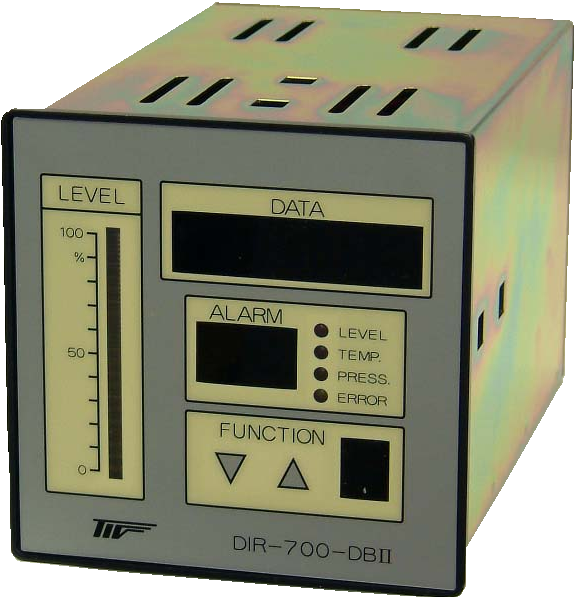

DIR-700-DBII is an independent type cargo data indicator. Bar graph indication of cargo level, digital alternative indication of cargo level, pressure, and cargo temp. as well as alarm status indication are integrated in compact designed DIN96 x 96 housing.



Separate continuous indication system can be created by using DIR- M1600 MULTI-MONITOR as the interface between local tank gauges and CALTIS (PC) indication system.



APPLICATION EXAMPLE

DIR-700-DBII DIGITAL / ANALOG INDICATOR receives cargo data through RS232C and indicates these data. SPT-3500 type magnet float type tank gauges are installed onto each cargo tank. Liquid level data as well as three points temp. (High, Middle and Low) and Pressure Signal are sent to DIR-M1600 MULTI-MONITOR through 2 core cable.

DIR-700-DBII are connected to RS232C port of DIR-M1600 and such cargo data are indicated at remote separate location.
