NLZ 金属转子流量计（250mm)

■ OUTLINE



The NLZ series is a compact, metal tube type variable area flowmeter with a face-to-face dimension of 250 mm.

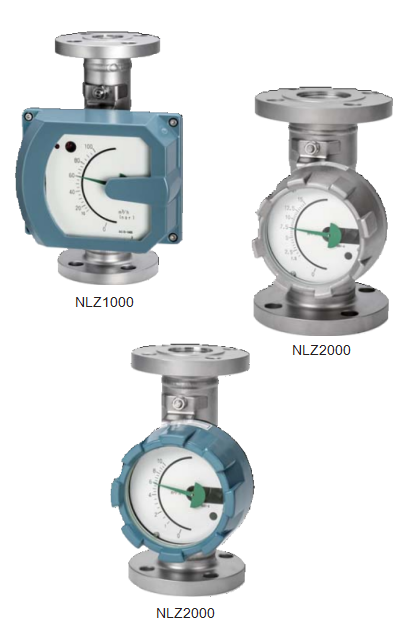

This series consists of NLZ1000 (general type and intrinsically safe type) and NLZ2000 (flameproof type). Each model has various types including a local indication without power supply type and    a fieldbus type. The NLZ series can measure flow rates of any processes and devices.

The standard material for the wetted parts is 316L stainless steel. Fluororesin lining is also available for highly corrosive fluids. As optional indicator and transmitter functions, alarm output, 4–20 mA DC output, HART® communication, and FOUNDATION® Fieldbus can be added. The NLZ series has acquired ATEX, IECEx, FM, and NEPSI explosionproof certifications.



■ FEATURES



❑ Unified face-to-face dimension

The face-to-face dimension is unified to 250 mm for all connection sizes from 15 mm to 100 mm, which allows for easy piping design.

❑ Explosionproof

Intrinsically safe construction: NLZ1000 series Flameproof construction: NLZ2000 series
