FT-1000 钢带液位计

GENERAL

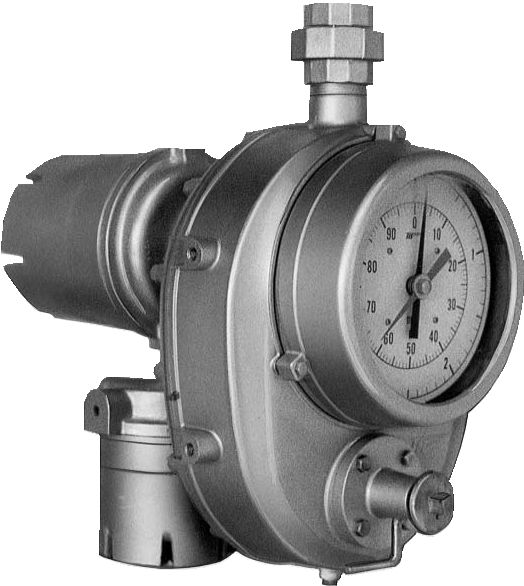

FT-1000/FP-1000 is a mechanical float type tank gauge. Two versions are already available for selection:

FT-1000 is a standard type float-tape tank gauge and the float is normally guided by guide wires.

It has wide applications.

Whereas, FP-1000 is a pipe sealed float type tank gauge the and indicator part is totally isolated from the tank's interior by magnet coupling. Thus, FP-1000 is suitable for pressurized tanks and/or corrosive liquid tanks.

Both for FT-1000 and FP-1000, 1 mm unit local indication is pro- vided. Also, alarm contact(s), pneumatic output, electric output as well as digital BCD code transmitters can be equipped for remote data transmission.



Compared to other principles, these Float type tank gauges are relatively low-cost and reliable, have simple construction, and are easy to maintain.
