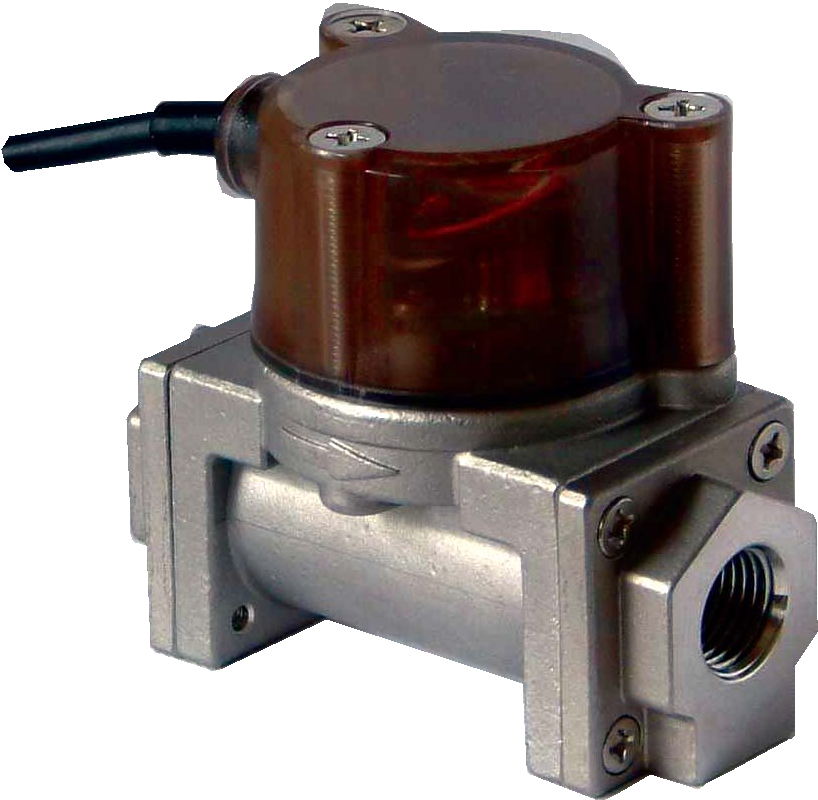

TW-100 叶轮流量计

OUTLINE

TW-100 Series Axial-flow rotary vane type Flowmeter has been real- ized by adopting the mag-wheel technology which has been cultivated up to today. Since there is little axial stress, which is one of the main features, the life becomes longer and the reliability has been improved very much.

Fluid is spirally introduced to the magnet wheel in flat configuration by the whirlpool guide built in upstream, and the flow rate is measured by the rotating speed of wheel being picked up by Hole IC.



FEATURES





❑ Drainage air purging is possible by back-flow rotation inhibition guide of wheel.

❑ L type connector can be directly installed with whirlpool guide.

❑ CE marking (TW-15☐, 16☐)

❑ Excellent linearity of voltage output type owing to CPU measuring circuit.

❑ Compact in design and made of precision casting.

❑ Preeminent cost performance
