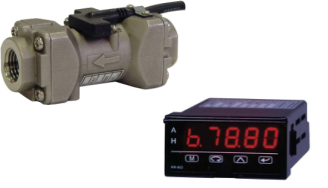

TW-090 叶轮流量计

OUTLINE

TW-080 / 090 Series axial-flow mini-turbine flowmeter is a mass- produced type and most cost effective, based on the know-how which has been accumulated with TW-100.

Fluid is spirally introduced to the magnet wheel in flat configuration by the whirlpool guide built in upstream, and the flow rate is mea- sured by the rotating speed of wheel being picked up by Hole IC.







FEATURES

❏ Drainage air purging is possible by back-flow rotation inhibition guide of wheel.

❏ L type connector can be directly installed with whirlpool guide.

❏ Preeminent cost performance

❏ Excellent linearity of voltage output type owing to CPU measuring circuit.

❏ Compact in design and made of precision casting.
