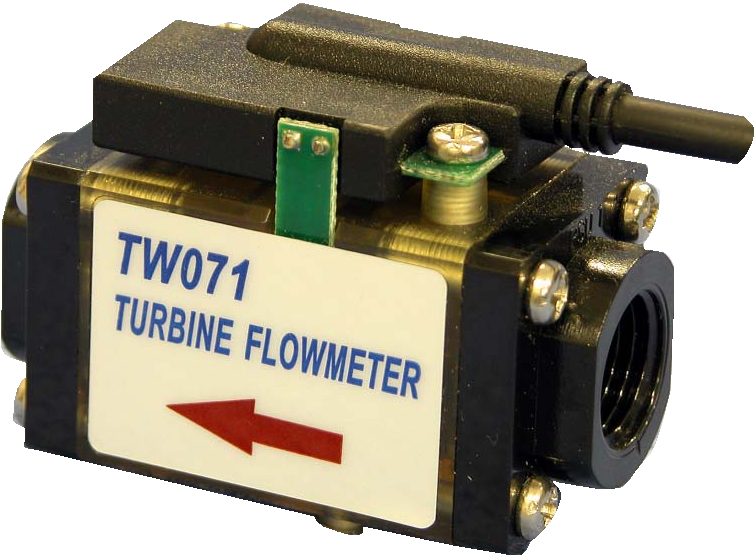

TW-070 叶轮流量计

OUTLINE

TW-070 axial-flow type micro flowmeter, as a full-flow flowmeter, is capable of measuring a flow rate of as low as 30mL/min through optical signal type detection with little rotational resistance.

The flowmeter is composed of metal-free liquid contact materials so that it is capable of measuring the flow rate of strong acid and alkaline liquids.

In order to secure wear resistance, ceramics are used for moving parts.

The flowmeters are widely used in semiconductor manufacturing, chemical and food pro- cessing industries.

Low-flow rate measuring system is easily configured by combining it with the RR900N Series.



FEATURES





❏ Measurable as low as 30mL/min.

❏ Infrared detection system less susceptible to outside light.

❏ Metal-free wet components made of super-engineering plastics PSU (polysulfone) and ceramics.

❏ Rigid ceramics used for the moving parts.

❏ Compact design.

❏ A full-flow system clears away bubbles quickly.
