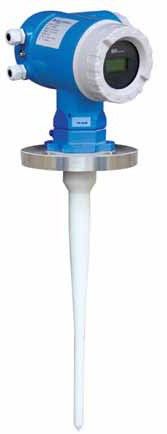

LD20雷达波液位计

Overview

BR LD20 is a 2-wire, 5.8GHz pulse radar level transmitter for continuous monitoring of liquids and slurries in storage and process vessels including high temperature and pressure, to a range of 20 m.

Benefits

Ÿ Graphical local user interface (LUI) makes operation simple with plug-and-play setup using the intuitive Quick Start Wizard

Ÿ LUI displays echo profiles for diagnostic support

Ÿ Communication using HART

Ÿ Process Intelligence signal processing for improved measurement reliability and Auto False-Echo Suppression of fixed obstructions

Ÿ Programming using infrared Intrinsically Safe handheld programmer or SIMATIC PDM

Application

LD20’s unique design allows safe and simple programming using the Intrinsically Safe handheld programmer without having to open the instrument’s lid. It also features a built-in alphanumeric display in four languages.

Start-up is easy with as few as two parameters for basic operation. Installation is simplified as the electronics are mounted on a rotating head that swivels, allowing the instrument to line up with conduit or wiring connections LD20 features patented Process Intelligence

signal-processing technology for superior reliability.

Ÿ Key Applications: liquid bulk storage tanks, process vessels with agitators, vaporous liquids, high temperatures, asphalt, digesters
