AC系列玻璃转子流量计

GENERAL

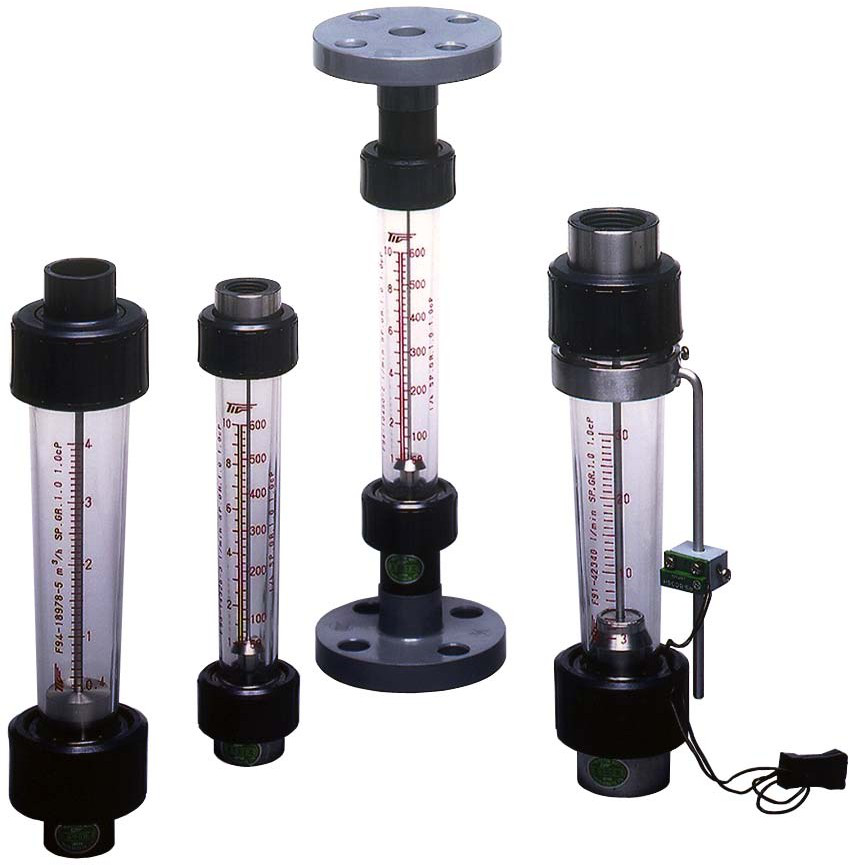

AC is a series of direct indication type variable area flowmeters with resins made construction.

Thanks to Union assembled construction, removal of tapered tube and internal parts is possible without removing flowmeter itself from process piping. This results in easy maintenance and cleaning/replacement of parts.

AIl non-metallic material construction version is avail- able for Pure/Ultra pure water or corrosive chemical process lines.

AC meets the requirements for quick delivery with competitive price.



FEATURES

● Quick delivery and Cost effective

● Various connection fittings available Rc thread, TS socket or flange connection.

● Union assembling construction

Simple and easy installation and disassembling.

● Size line-up:

From 15mm (1/2") to 50mm (2").

This can cover almost all requirements.

● Non-metallic material construction available

No metallic ions are produced. Suitable for Pure/ Ultra pure water lines.

● Alarm contact available

ln addition to local flow rate indication, a reed switch alarm contact is available. AC acts as "FLOW SWITCH"

● Safety and durable design with Back-up ring:

Stainless steel back-up rings are provided for Rc thread parts to avoid cracks during installation.

● Double graduation

L/min and m3/h double scaled.

● Custom order calibration/graduation available:

In addition to standard calibration for water, special custom made calibration against customers' actual liquids is available. Direct reading of flow rate of process liquids without compensation calculation.
