R-101-E玻璃转子流量计

GENERAL

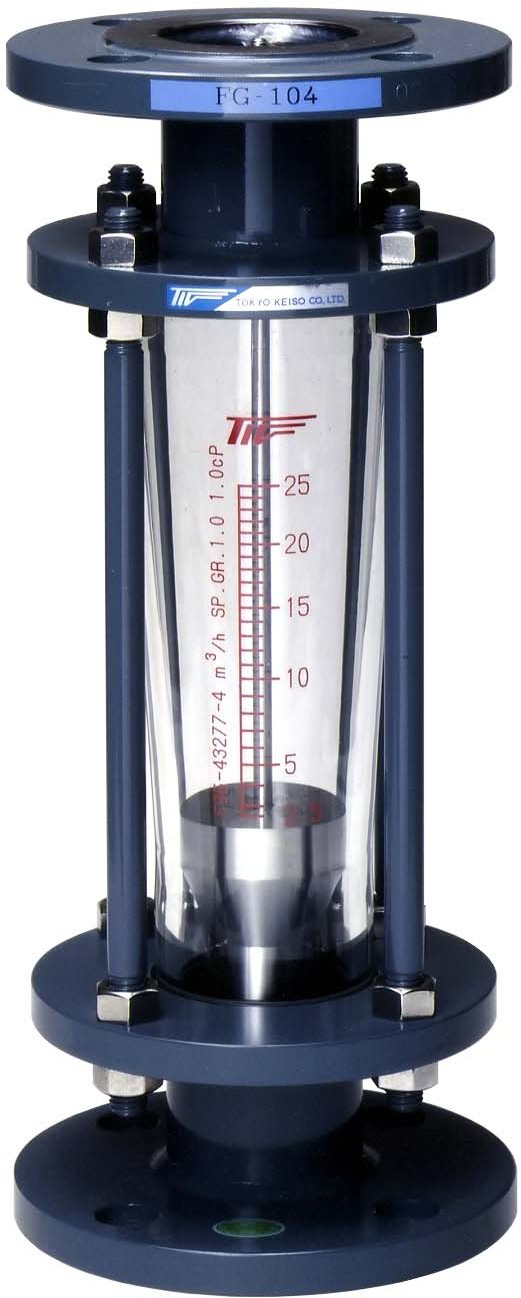

R-101-E is a glass tube type variable area flowmeter. The flow rate is indicated by the position of float and the graduation engraved on the glass tube.



Although it has a very simple construction, it is widely used for measurement of flow rate of liquids and gases in various applica- tions thanks to its high reliability and easy handling capability.



A large sized tapered tube is adopted compared to standard type glass tube flowmeters and wide scale range is possible.

In addition to standard material of steel and stainless steel, PVC is also available for corrosive applications.





STANDARD SPECIFICTION

● Available size : 15mm(1/2") to 100mm(4")

● Measuring fluid : All kinds of liquids and gases

(Not suitable for steam measurement. AM se- ries Metal Tube Flowmeters are recommended)

● Available material

Fittings : Carbon steel, SUS304, PVC, HT-PVC* Tapered tube : Heat-resistant glass

(Acryl tapered tube is available on request.) Float : For liquids SUS304, PVC, HT-PVC* others

For gases Aluminium, SUS304, others

Seal : NBR, EPDM, FPM



* High temperature use PVC



● Process connection

Standard : JIS10K flange

Option : ANSI, DIN, other flanges

Rc, NPT threads (upto 50mm)



● Flow direction : Bottom to Top
